Steel Structure Garret
Mezzanine Floor Platform
——
Steel platform shelves (also known as mezzanine shelves or steel structure platforms) are multi-layer storage systems that utilize the vertical space of warehouses. They are usually built with steel structures and are suitable for scenarios where small and medium-sized goods are stored, picked, or where office and warehousing are combined.
1.Maximize space utilization
By building platforms of 2 to 3 floors or even more, the warehouse height (usually 3 to 8 meters) can be effectively utilized, increasing the storage area by 1 to 3 times.
2. Strong flexibility and customizable design
Different floor heights, load-bearing capacities and passage widths can be designed according to the warehouse layout and the type of goods.
3. Multi-functional uses
Combined storage and office space: The upper layer can be used for storage, while the lower layer can serve as a sorting area, packaging area or office area.
4. Strong load-bearing capacity
It is laid with steel structure and steel plates/wood boards. The load-bearing capacity of each floor is usually 300 to 1000kg/m², and for heavy-duty platforms, it can reach over 2000kg/m².
5. Easy to install and detachable for adjustment
Modular design enables quick installation, disassembly or layout adjustment to adapt to business changes.
6. Improve work efficiency
It can be matched with stairs, elevators, conveyor belts and other equipment to optimize the flow of people and reduce the handling time.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Steel Structure Mezzanine Platform Floor

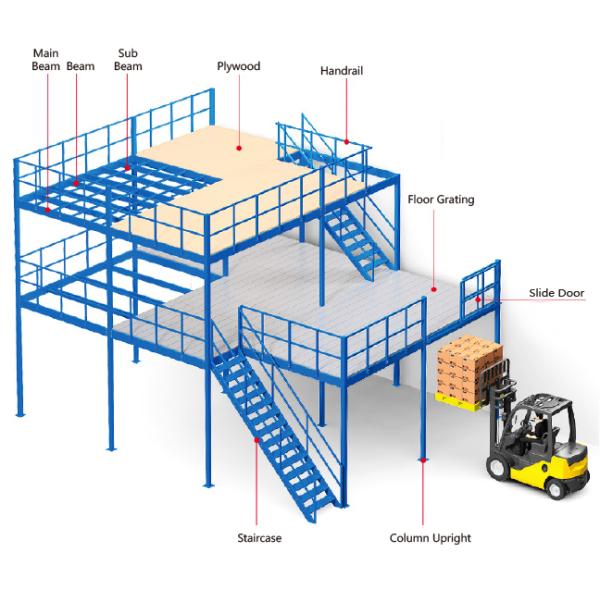

H beam

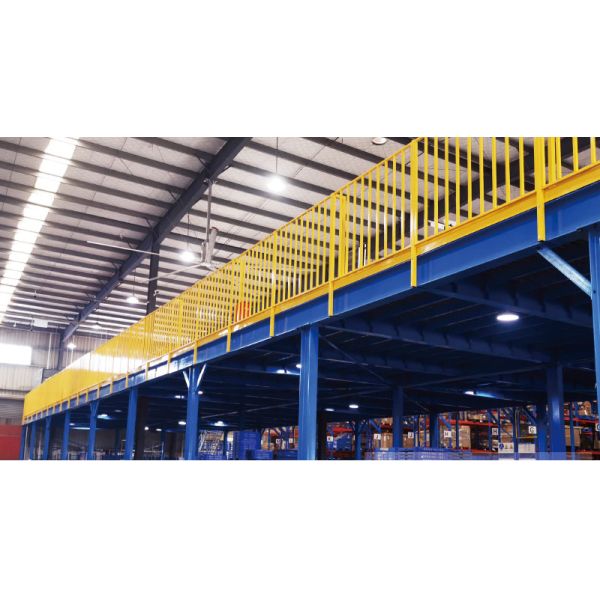

H beam steel mezzanine platform adopts H-type steel and cross beam as the major supporting for the steel panel.Usually we use the steel panel or MDF panel for the mezzanine floor,there are also with staircase and guardrail.Match with the cargolift for the efficientcy.
It is suitable for the higher warehouse,large loading capacity,longer span and large storage,it will be full use of the space,one warehouse used as two warehouse.Widely be used for the electonics products,hardware,commuincation and printing,etc.
Upright & Main Beam Connect
Both of them are H-steel,Its loading capacity is high and span is long.The major beams are connected by connector piece in each side.It will make the beams moare stable.
Support Beam & Main Beam Connect
They are connected with the hanging piece.And the hanging piece is welded on the main beam.So the majorbeam is more stable.
Steel Pane l& Guardrail Connect
Steel panel and support beamare connected with hooks.It is very stable.
The guardrail hangs on the main beam without holes on the beam.So there is no bad influence on the beam
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
CASE
—
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Steel Structure Garret
Mezzanine Floor Platform
——

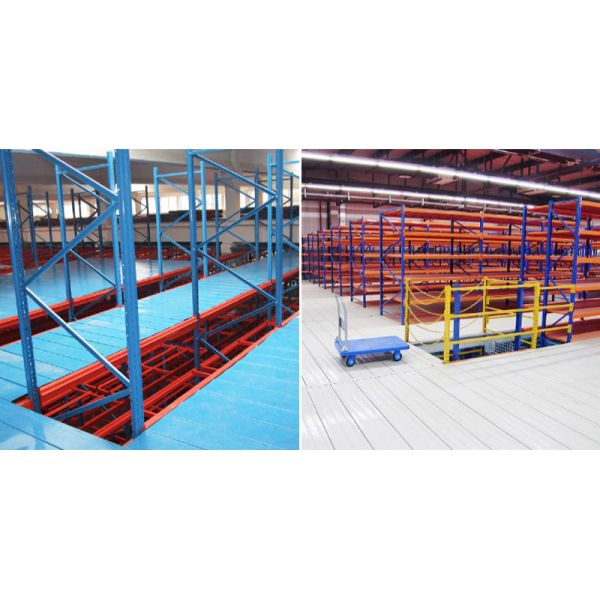

Mezzanine Floors Racks (Steel Structure Garret) are basically made up of medium-duty shelves or heavy-duty shelves as main support plus floor panels. Floor panels are usually made of cold-rolled steel slabs, patterned steel or steel grille floor panels.
The load capacity per shelf of medium duty A mezzanine floor rack is usually less than 300kg, the floor spacing is usually 2.2m~3.0m, the top shelf height is generally 2m or 1.8m, the floor is 250×40×2.5mm special cold-rolled steel plate, The load can reach 300kg/m² of floor panels, and the second, third or fourth floor loft can be made according to the height of the warehouse, which fully considers the convenience of the staff.
The load capacity of per shelf of medium duty B mezzanine floor rack usually between 300kg and 700kg. The floor spacing is usually 2.2m~4.0m. The top shelf height is generally 2m or 1.8m. The floor is 250×40×2.5mm special cold-rolled steel plate. Surface loading up to 300kg/m²-600kg/m²
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Upright & Main Beam Connect
Both of them are H-steel,Its loading capacity is high and span is long.The major beams are connected by connector piece in each side.It will make the beams moare stable.They are connected with the hanging piece.And the hanging piece is welded on the main beam.So the majorbeam is more stable.

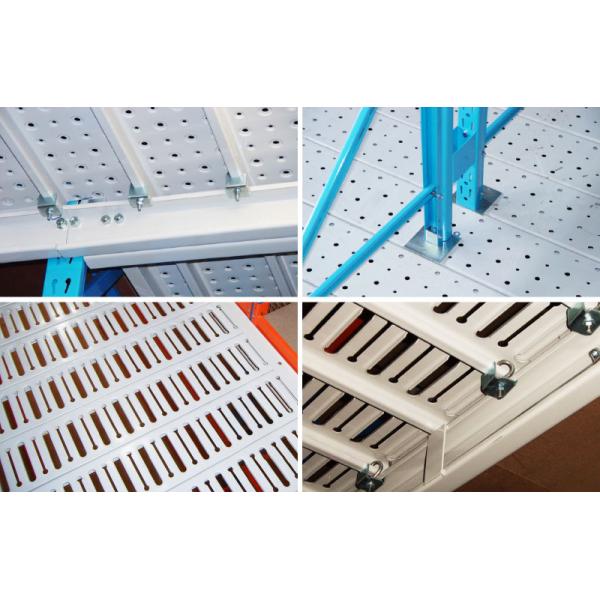

Steel Panel & Guardrail Connect
Steel panel and support beamare connected with hooks.It is very stable.The guardrail hangs on the main beam without holes on the beam.So there is no bad influence on the beam.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Features & Advantages
——
- Quick to assemble, clean and easy.
- Platform can be easily expanded, moved or modified for future requirements.
- Compatible with most types of handling equipment
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility
- It can be complemented with a variety of shelving systems.
- Suitable for high warehouses, storage small goods, manual access, large volume of storage
- Adaptable to the specific needs of the client, owe to the great variety of sizes available, types of floors, construction systems, et
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
CASE
—
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
